QGIS meshing plugins

QGIS meshing plugins

QGIS plugins for meshing geophysical domains.

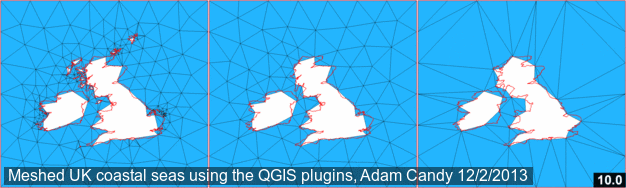

UK meshed

View the project on GitHub: QGIS-Meshing

Test engine status

Build Status Release Release
Build Status Development Development

Outline

This project contains four plugins for the generation of surface meshes in QGIS:

Mesh surface plugin Mesh surface plugin,
Boundary identification plugin Boundary identification plugin,
Rasterise Polygons plugin Rasterise Polygons plugin, and
Raster Calculator plugin Raster Calculator plugin.

Installation

Ubuntu package

For anyone who would like to experiment with the plugins, please download the qgis-plugins-meshing Ubuntu package which is available in the following PPA:

ppa:meshing/release

(which depends on packages in ppa:ubuntugis/ppa)

Commands required:

sudo add-apt-repository ppa:ubuntugis/ppa
sudo add-apt-repository ppa:meshing/release
sudo apt-get update
sudo apt-get install qgis-plugins-meshing

If the final command fails, please download the package manually from

http://amcg.ese.ic.ac.uk/~asc/public/qgis-plugins-meshing_1.9_all.deb

and install with

sudo dpkg -i qgis-plugins-meshing_1.9_all.deb

(there is a fix for Precise, which is currently being processed by Launchpad)

Development manual install

Clone the GitHub repository and use the following:

make install

This will install the plugins for all users (and requires superpowers). For a single-user install, use the following:

make installlocal

Manual

Further information on the dependencies can be found in the manual at: http://amcg.ese.ic.ac.uk/~asc/public/meshing_manual.pdf

Testing

Test the plugins with the following command executed in the root folder of the repository

make test

A buildbot has been setup to continuously tests new commits, see QGIS-Meshing buildbot.

Development

Contributing

Contributions to the plugins are very welcome. Get involved!

Development follows the model described at nvie.com/git-model, with the main development branch named 'dev' and tested development branches prefixed with 'dev-'.

The changes will be tested by a buildbot in a sterile environment to check tests pass and code integrity in maintained. With a green light, the changes will be merged in. Thanks!

Current development

Milestones for the project can be viewed at Milestones.

Current development focus is on a test engine to ensure the plugins are robust.

Issue tracker

Issues and bugs found with the project can be viewed and edited at Issues.

Resources for developers

The plugins are written in Python, each being a Python package. A guide to developing Python plugins for QGIS is available here. The PyQGIS Developer Cookbook is also a useful resource.

Contact

The plugin developers can be contacted via the maintainer Adam Candy, GitHub user adamcandy.

License

The QGIS-Meshing plugins free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation, version 2.1 of the License.

Copyright (C) 2012-2013 Imperial College London and others. See the AUTHORS file in the main source directory for a full list of copyright holders.
